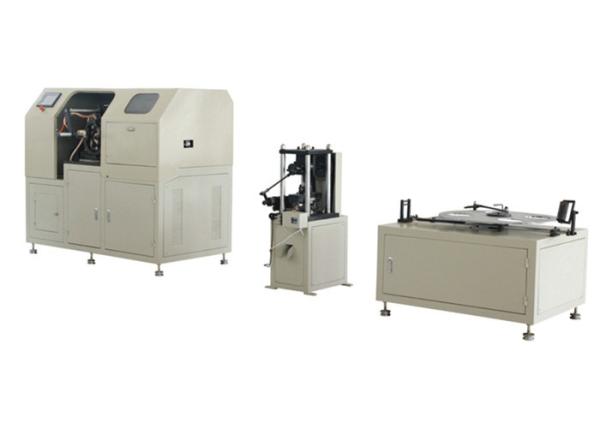

Full Auto PLJY-75-II Rotary Pleating Machine Spiral Center Tube Making

Brand Name : PLM

Model Number : PLJY-75-II

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD 10000 SET

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 7 Set Per mouth

Delivery Time : 8 work days

Packaging Details : Export standard wookden box

Name : center tube Spiral coiling machine

Certificate : CE Certificate

Function : center tube Spiral

Type : Center Tube Making Machine

Material : Stainless Steel

Structure : Steel Structure

Product capability : 20-35pcs/min

M/C weight : 800kg

Contact Now

Full-auto Spiral Center Tube Making Machine Steel Structure white PLJY-75-II Certificate CE Certificate Material Stainle

General Description

The machine is technically used in manufacturing the center tubes of the auto. Oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.

Machine parameters

1. The machine can easily change the diameter of screw tube in a short time.
2. Cut the needed length according to what the customers' specifications.
3. Can adjust the clutch according to different thickness of the steel strip.
4. The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
5. Adopts hydraulic pressure drive, which has strong power and good stable.

Specification

1, Product capability:20-35pcs/min
2, Diameter of the center tube:Φ30~Φ75mm
3, Length of center tube to be processed:freely.
4, Steel plate thickness:0.25~0.32mm
5, Motor power:3kw
6, Power supply:380V/50Hz
7, Working air pressure:0.6MPa
8, M/C weight:800kg
9, Size of the main machine:1600×800×1240mm(L×W×H)
10, Size of the paper decoiler:1200×800×760mm(L×W×H)

Features

1, The machine can easily change the diameter of screw tube in a short time.
2, Cut the needed length according to what the customers' specifications.
3, Can adjust the clutch according to different thickness of the steel strip.
4, The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
5, Adopts hydraulic pressure drive, which has strong power and good stable.

Applications

The machine is technically used in manufacturing the center tubes of the auto. Oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.
